Lifting Table

H300

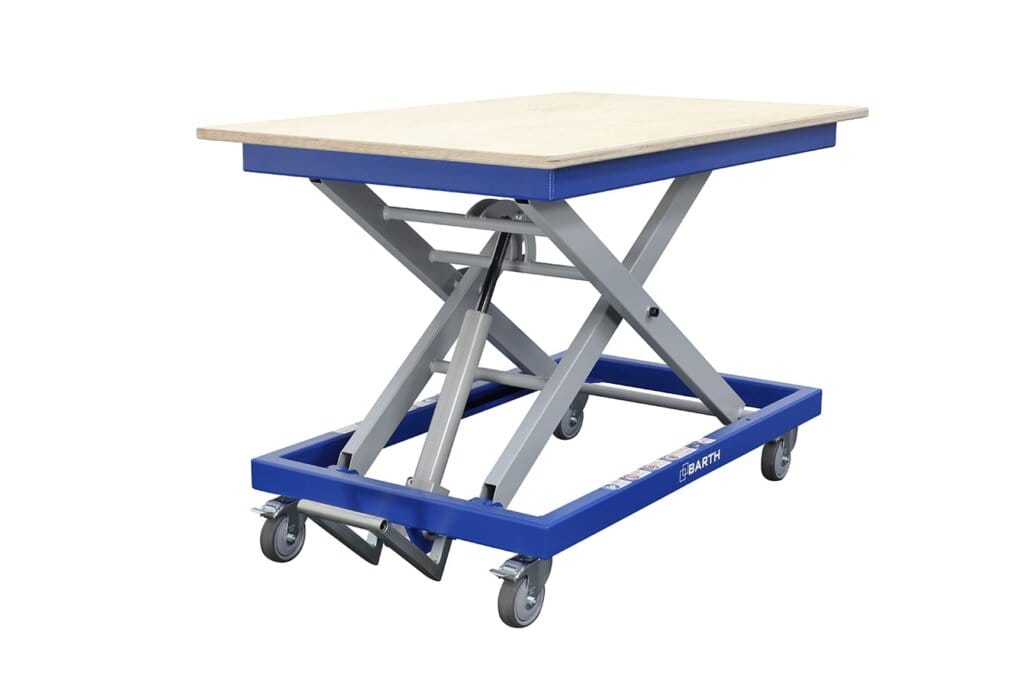

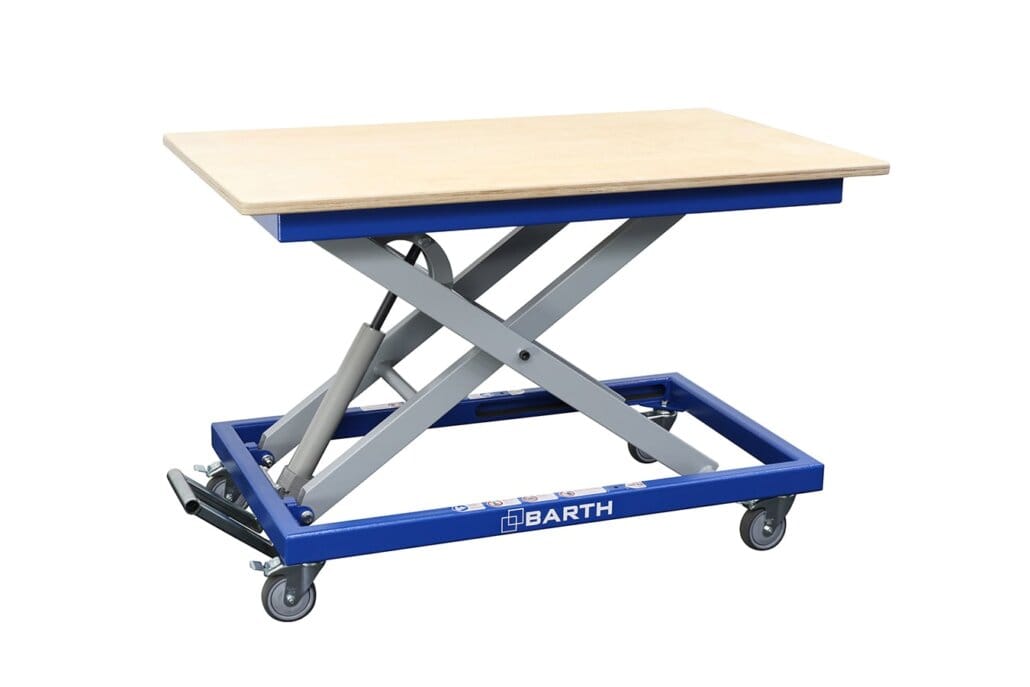

Lift table H 300: The perfect support

Solid, functional and reliable

The H 300 lift table is the reliable choice for ergonomic working. With a load capacity of 300 kg, it makes it easier to lift, transport and position workpieces and materials in your workshop. The infinitely height-adjustable worktop enables back-friendly working. The castors ensure easy handling and the tried-and-tested hydraulic cylinder with foot pump enables effortless adjustment of the worktop, even with heavy loads. A practical helper for everyday use – solid, functional and reliable.

More comfort, less stress in everyday working life

The H 300 impresses with its well thought-out design, which is specially designed for practical everyday work. The infinitely variable height adjustment enables quick adaptation to different work situations – whether during assembly, packing or loading and unloading. This supports ergonomic and back-friendly working at all times, which significantly reduces physical strain and promotes the health and satisfaction of employees. A real plus point in times of a shortage of skilled workers. The simple, self-explanatory operation eliminates the need for lengthy training and saves valuable time in the work process.

Highlights

The flexible entry into the world of lift tables

The H 300 lift table from BARTH is the ideal solution for anyone looking for a reliable, ergonomic and attractively priced entry into lift tables. Whether in workshops, production, logistics or private environments – it offers a compact, robust and versatile solution.

Key Features & Performance

With a load capacity of up to 300 kg, a sturdy multiplex worktop (1,245 × 740 mm) and infinitely variable height adjustment from 475 mm to 1,071 mm via foot hydraulics, the H 300 is perfect for assembly work, internal transport and machine loading.

Mobility & Handling

Brakeable castors ensure easy maneuvering and secure positioning. The table can be moved effortlessly and used flexibly across different work areas – from workshop to warehouse.

Durability & Everyday Use

Its compact design and durable powder-coated finish make the H 300 virtually maintenance-free and reliable in continuous use. Delivered fully assembled, it’s ready to go immediately and adapts to a wide range of applications – from transport and picking to packing and machine support.

Data

1. Worktop: Multiplex plate 1,245 mm x 740 mm (birch)

2. Swivel castors: 4 swivel castors with brakes, easy to maneuver and securely lockable

3. Solid base frame: for up to 300 kg lifting capacity

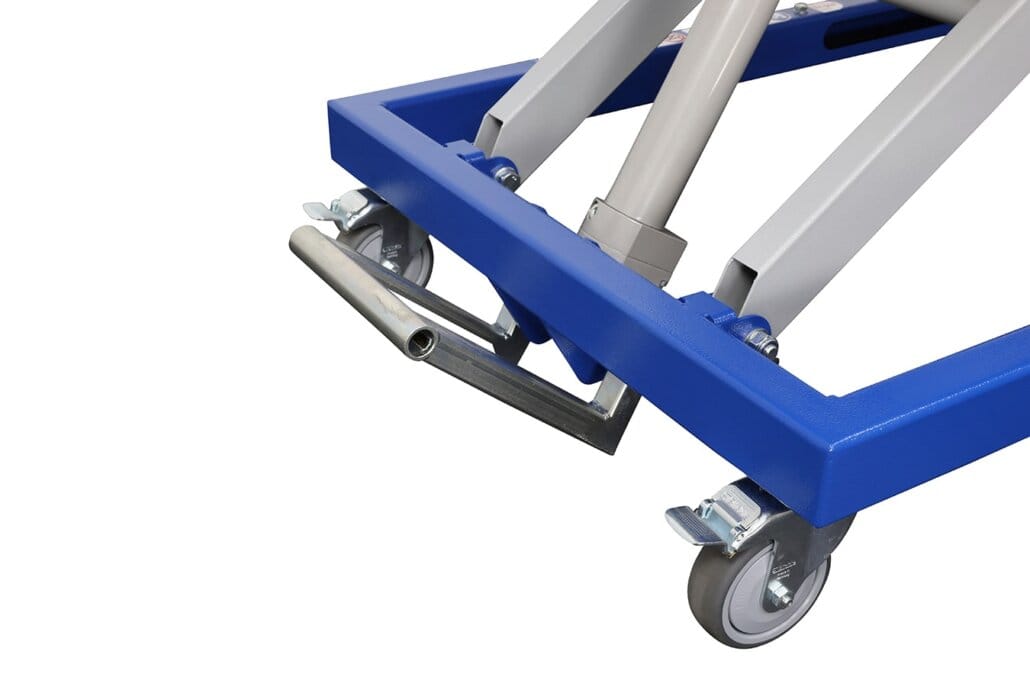

4. Foot-pumped hydraulic system: Manual with foot pump

5. Large adjustment range: between 475 mm – 1.071 mm

Equipment

The H 300 has the following equipment and specifications.

Load capacity: up to 300 kg
Lifting height: infinitely adjustable from 475 mm to 1,071 mm
Worktop dimensions: 1,245 mm x 740 mm (multiplex worktop)
Top frame dimensions: 1,100 mm x 650 mm
Castors: Ø 100 mm braked swivel castors for safe standing
Surface: durable and easy to clean thanks to powder coating
Delivery: completely pre-assembled – unpack and get started

Benefits

The objective: Increasing value-adding time at manual workplaces.

Security: Enables the safe transportation of heavy components and materials

Ergonomic: Infinitely adjustable work surface

Mobile: is very maneuverable and can be easily moved from station to station

Maintenance-free: Continuous operation without mandatory maintenance work

Self-explanatory: No training is required for the user

Making work easier: significantly reduces the physical strain on the user

Worktop

Easy to handle Perfect size and weight for a transport cart, with milled grips in the worktop

Robust

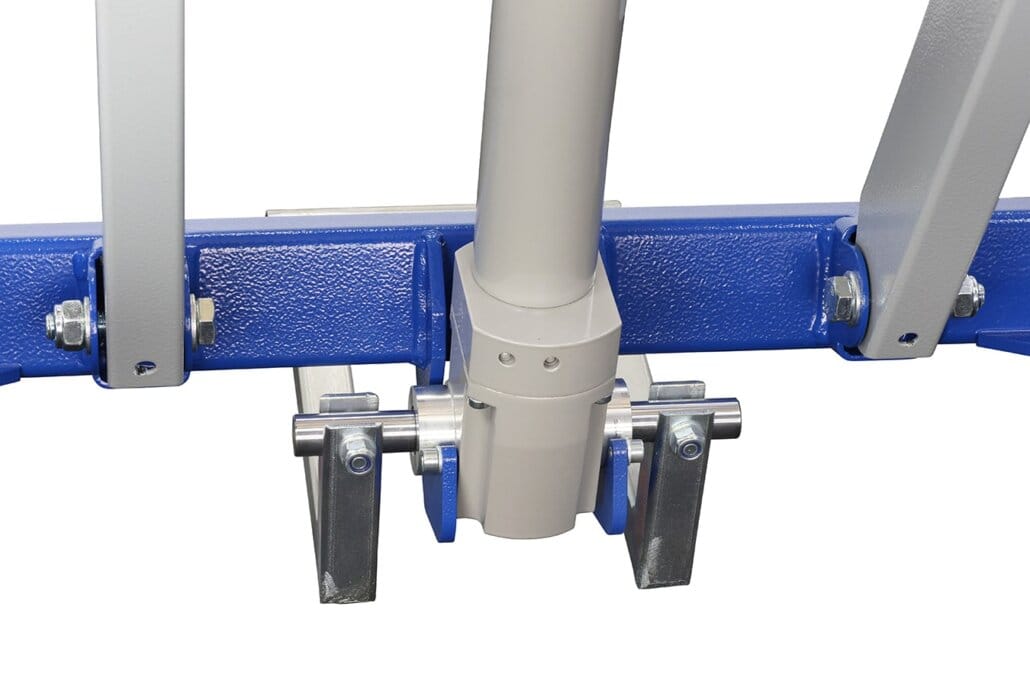

Solid welded construction of the cylinder holder (maximum shear force 1.2t)

Worktop

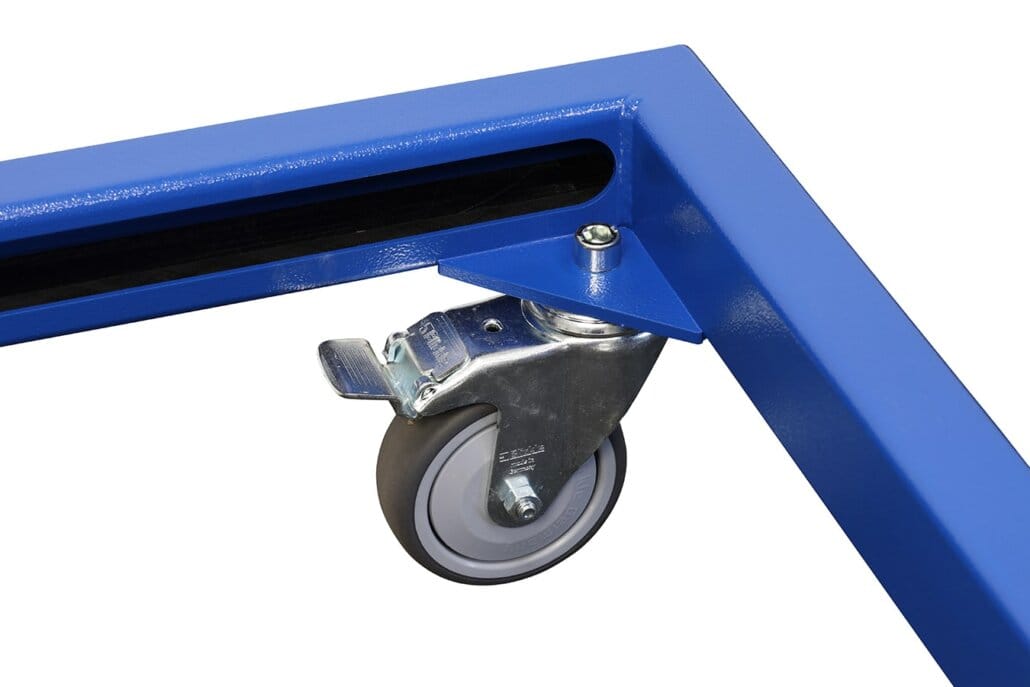

Smooth-rolling swivel caster with integrated brake for precise maneuvering and secure positioning.
