vakuuLIFT mini: The compact helper for every workshop.

Discover a true all-round talent for workshops of any size with the vakuuLIFT mini. Whether you need to move heavy loads or fix workpieces precisely, this assembly table is optimally equipped for every task. It is based on the compact H 400 lift table, which can effortlessly handle weights of up to 330 kg. The integrated vacuum suction cup acts as a reliable clamping device, enabling workpieces to be fixed quickly and without leaving a trace. Once placed on the suction cup, it holds the workpiece securely in place. The workpiece can be easily released or repositioned using the convenient manual slide valve. The hydraulic height adjustment via foot pump allows the operator to always work on the workpiece at the optimum height. This ergonomic working method not only ensures fatigue-free working, but also prevents long-term postural damage. A comprehensive range of accessories is available for the assembly table – from pull-out rails to increase the support surface to an additional vacuum cup holder for even larger workpieces. The vakuuLIFT mini is a versatile mobile workbench for workshops of all sizes. With its integrated vacuum suction cup, hydraulic height adjustment and extensive range of accessories, it enables efficient and ergonomic working in various application areas.

Highlights

Flexible Clamping Surface

Perforated worktop with integrated clamping system for precise and secure positioning of workpieces.

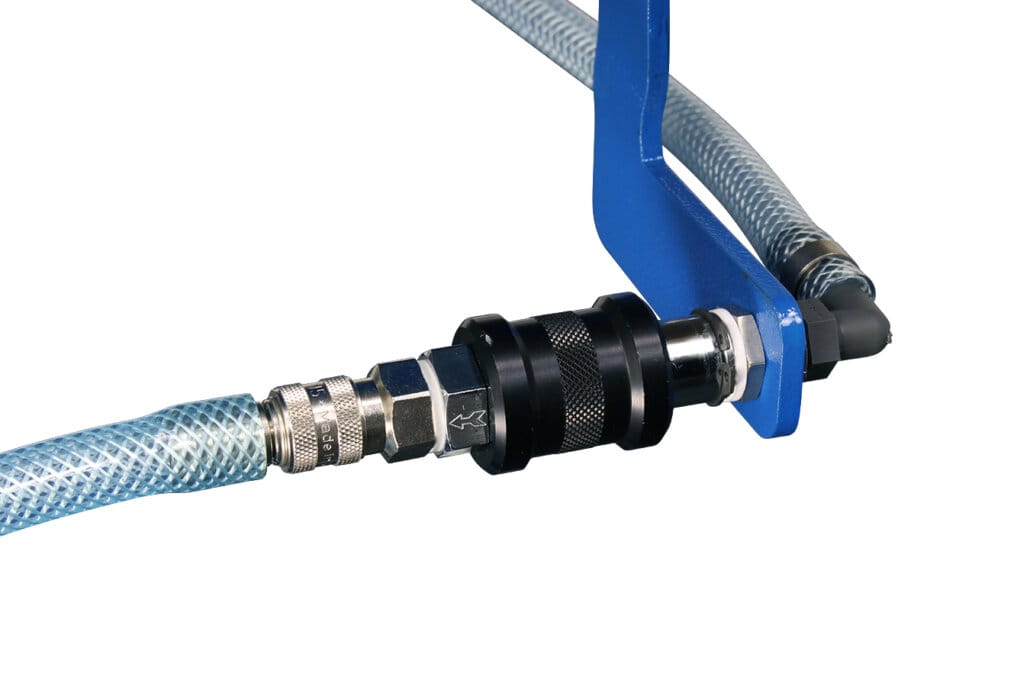

Reliable Connections

High-quality hose and coupling system ensures consistent vacuum performance and durability.

Mobile Workstation

Compact scissor lift design with smooth-running castors for flexible use across the workshop.

Maximum Flexibility

Extendable pull-outs expand the working area for larger components and complex setups.

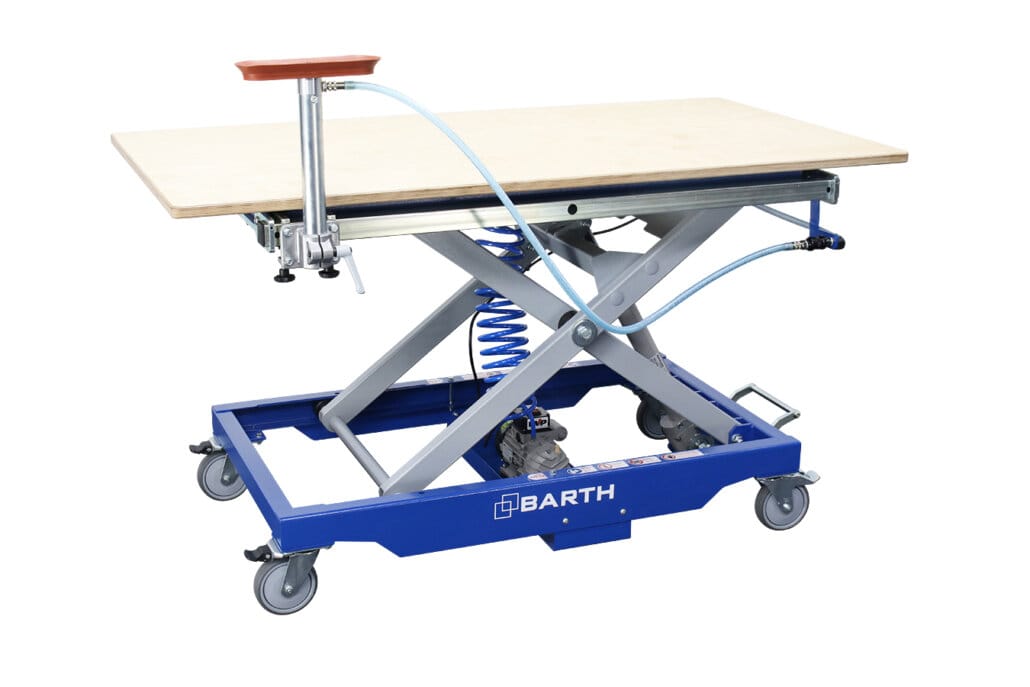

Adjustable Vacuum System

Height-adjustable vacuum cup allows optimal positioning for different workpiece sizes.

Ergonomic Height Adjustment

Hydraulic lifting system enables comfortable working at the ideal height.

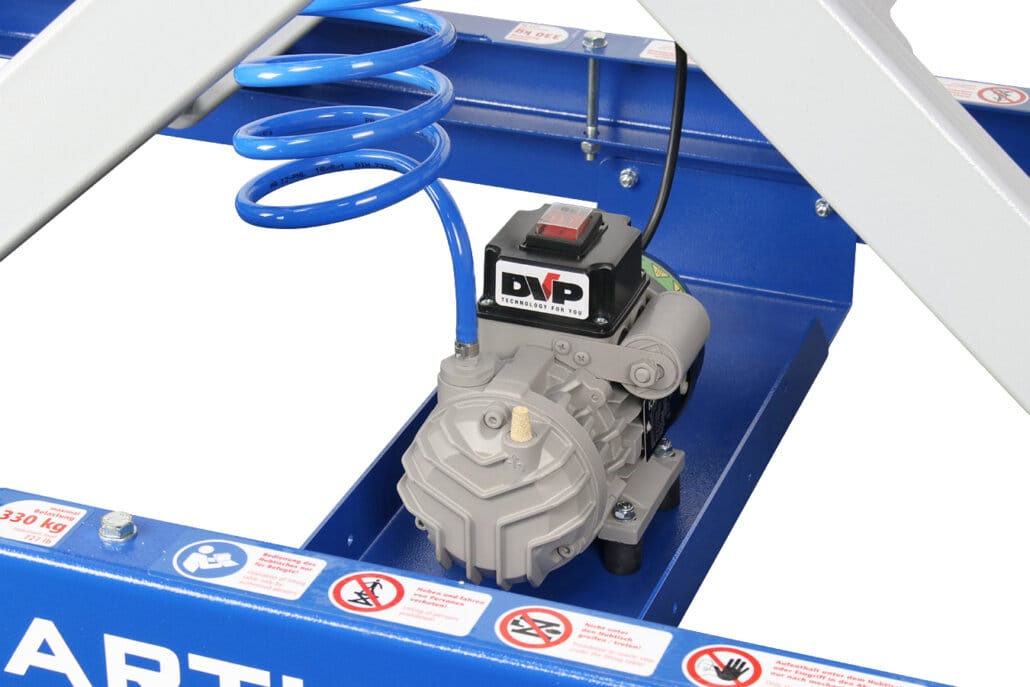

Powerful Vacuum Pump

Integrated electric pump delivers reliable suction for secure, damage-free clamping.

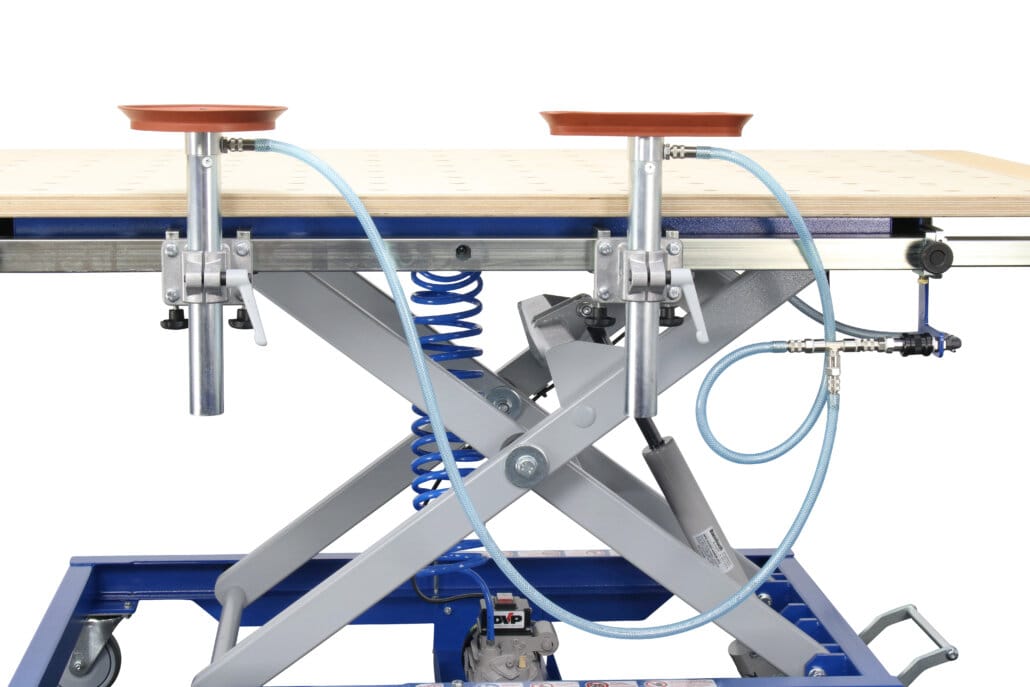

Multi-Cup Setup

Multiple vacuum cups allow handling of larger or irregular workpieces with ease.

Precision Workholding

Accurate alignment and fixation for clean, efficient and repeatable results.

Data

1. Perforated panel: Work surface 1,500 × 800 × 30 mm (birch multiplex, SET variant)
2. Longitudinal pull-outs: Extendable by +400 mm per side (SET variant)
3. Hydraulic system: Foot-pumped cylinder with up to 330 kg lifting capacity
4. Movable vacuum cup: Controlled via manual slide valve for precise positioning
5. Vacuum pump: Electric pump, 5 m³/h (230V)
6. Pull-out rails: 4 rails, 940 mm length (optional)
7. Additional vacuum cup: With holder for extended clamping options (optional)

Equipment

See for yourself how versatile our products are.

Space-saving design: Compact footprint for efficient use of workshop space
Mobile: Smooth-running swivel castors for flexible use throughout the workshop
Ergonomic: Infinitely adjustable height for back-friendly working
Sturdy construction: Stable scissor design for vibration-free operation
Gentle clamping: Damage-free fixation using vacuum suction cups
Expandable: Wide range of accessories for versatile applications
Load capacity: Up to 300 kg
Lifting height: Infinitely adjustable from 475 mm to 1,071 mm
Worktop: 1,245 × 740 mm multiplex surface
Top frame: 1,100 × 650 mm
Castors: Ø 100 mm swivel castors with brakes
Surface: Durable, easy-care powder coating
Delivery: Fully assembled – ready for immediate use

Benefits

The vakuuLIFT mini – equipment and specifications at a glance.

High-quality components: Form the reliable base of the system
Ergonomic: Height adjustment via foot hydraulics from 480 mm to 1,070 mm
Mobile: Smooth-running castors (2x swivel with directional lock, 2x with brakes Ø 125 mm)
Secure clamping: Vacuum cup (250 × 80 mm) for firm, damage-free fixation
Powerful: Electric vacuum pump (5 m³/h) with manual slide valve
Integrated: Built-in 230 V socket strip with switch for vacuum pump
High load capacity: Supports up to 330 kg
Ready to use: Delivered fully assembled

Worktop: Multiplex surface 1,500 × 800 × 24 mm
SET version: Includes perforated plate and longitudinal pull-outs +400 mm (grid 100 × 100 mm, Ø 22 mm holes)

Installation dimensions

vakuuLIFT mini: 1.500 x 885 x 480 – 1.070 mm (L x W x H)

vakuuLIFT mini SET: min. 1.700 x 900 x 480 mm, max. 2300 x 900 x 1.070mm (L x W x H)

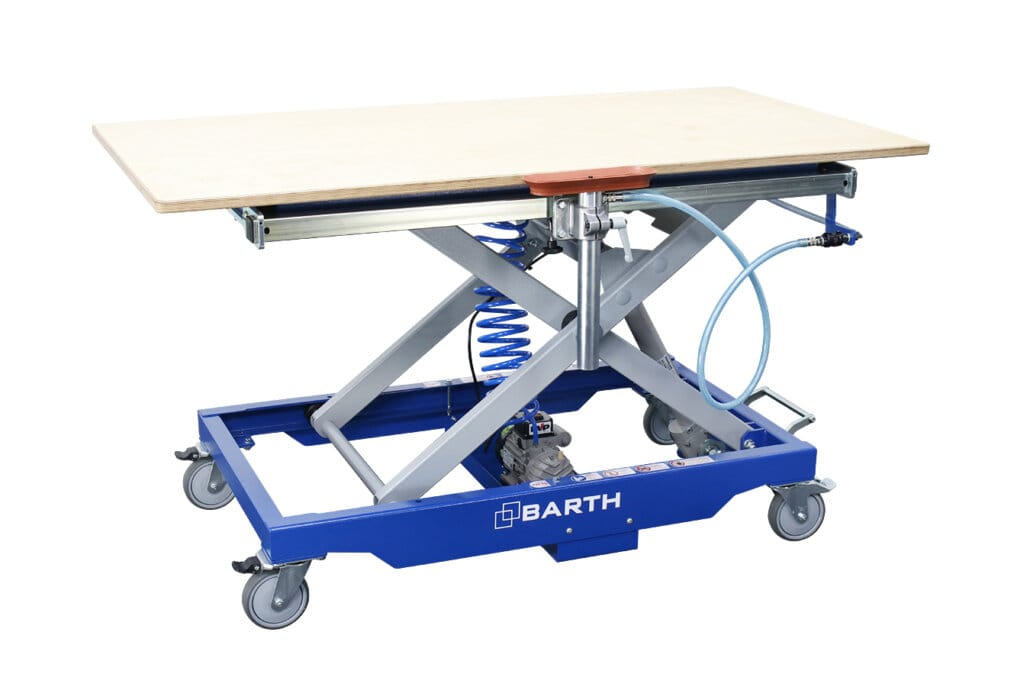

vakuuLIFT mini

With basic equipment

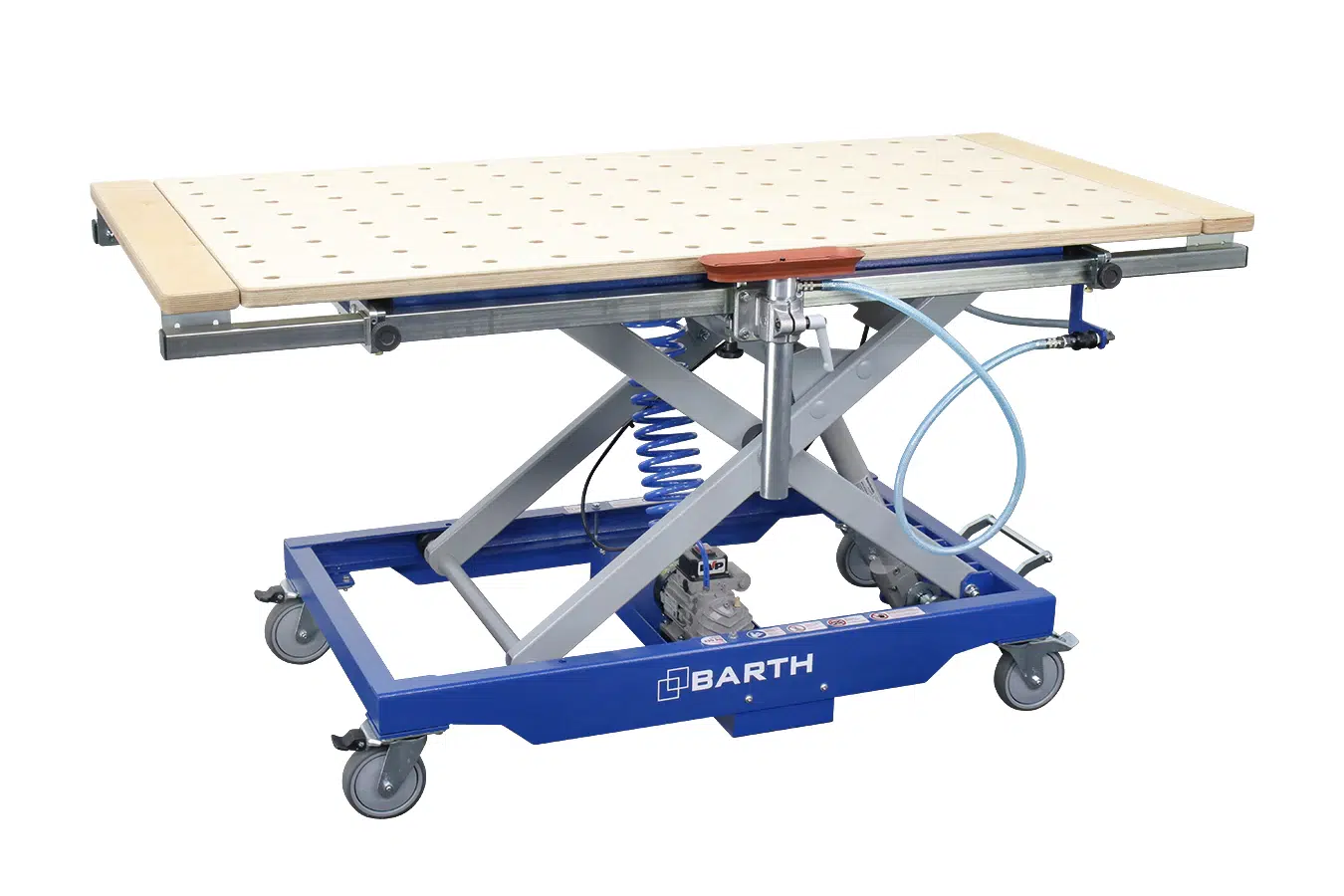

vakuuLIFT mini SET

With perforated panel and lengthwise pull-outs
